| WB160 | 轉速r/min | 180 | 210 | 270 | 320 |
| 電機功率 | 4-11kw-6P | 4-15kw-4P | |||
| WB180 | 轉速r/min | 165 | 210 | 250 | |
| 電機功率 | 4-15kw-6P | 4-22kw-4P | |||
| WB225 | 轉速r/min | 165 | 210 | 250 | |
| 電機功率 | 18.5-30kw-6P | 22-37kw-4P | |||

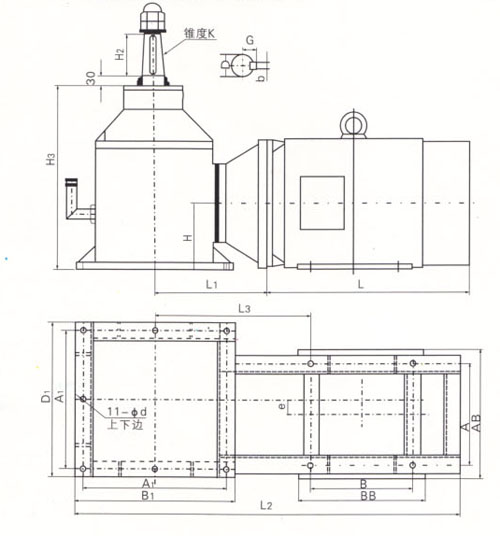

| A1 | B1 | d | e | H3 | L1 | K | H2 | D | b | G | |
| WB160 | 382 | 425 | 16 | 42 | 505 | 306 | 1:10 | 115 | 60 | 18 | 31.1 |
| WB180 | 30 | 325 | 115 | 60 | 18 | 31.1 | |||||
| WB225 | 410 | 455 | 22 | 35 | 570 | 383 | 1:10 | 115 | 70 | 20 | 36.6 |
| 383 | 1:20 | 135 | 80 | 22 | 43.3 |
| 電機功率 | 4KW | 5.5KW | 7.5KW | 11KW | 15KW | 18.5KW | 22KW | 30KW | 37KW | |
| H | 4p | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 225 | 225 |
| 6p | 225 | 225 | / | |||||||
| AB | 4p | 245 | 280 | 280 | 330 | 330 | 335 | 335 | 395 | 435 |
| 6p | 280 | 330 | 355 | 395 | 395 | 435 | / | |||
| A | 4p | 216 | 216 | 254 | 254 | 279 | 279 | 318 | 356 | |
| 6p | 254 | 279 | 318 | 318 | 356 | / | ||||
| B | 4p | 140 | 178 | 210 | 254 | 241 | 279 | 305 | 286 | |
| 6p | 178 | 210 | 254 | 279 | 305 | 305 | 311 | / | ||
| L2 | 6p | 990 | 1025 | 1025 | 1060 | |||||
| 6p | 970 | 1025 | 1045 | 1170 | 1170 | 1204 | ||||
| L3 | 4p | 433 | 433 | 446 | 446 | |||||
| 6p | 414 | 414 | 427 | 516 | 516 | 532 | ||||
